GC-FID Protocol for SCFA Analysis

Overview of SCFAs

Short-chain fatty acids (SCFAs) are aliphatic carboxylic acids typically containing fewer than six carbon atoms. Among them, acetate (C2), propionate (C3), and butyrate (C4) are the most abundant in the human gastrointestinal tract. These SCFAs are primarily produced through microbial fermentation of dietary fibers, resistant starches, and oligosaccharides by anaerobic gut microbiota. Other SCFAs such as valerate, isovalerate, and caproate are less prevalent but biologically significant, especially in proteolytic fermentation or dysbiotic conditions.

Biological Significance

SCFAs exert a wide array of physiological effects on the host. Acetate serves as a substrate for peripheral tissues and can cross the blood-brain barrier, impacting appetite regulation. Propionate acts as a gluconeogenic precursor in the liver and has demonstrated anti-lipogenic and cholesterol-lowering properties. Butyrate is the preferred energy source for colonocytes and has potent anti-inflammatory and anti-carcinogenic effects. Beyond energy metabolism, SCFAs interact with G-protein-coupled receptors (GPCRs), modulate gene expression via histone deacetylase (HDAC) inhibition, and influence immune cell differentiation, all of which make them critical signaling molecules in the gut-liver-brain axis.

Quantitative profiling of SCFAs has become central in several fields of biomedical and translational research. In microbiome studies, SCFA levels are used to infer microbial composition, functionality, and ecological dynamics. In nutritional science, they serve as biomarkers to evaluate the efficacy of prebiotic, probiotic, and synbiotic interventions. Clinically, altered SCFA profiles have been implicated in diseases ranging from inflammatory bowel disease and irritable bowel syndrome to metabolic syndrome and neurological disorders. Accurate and reproducible measurement of SCFAs in biological matrices such as feces, serum, or intestinal luminal contents provides critical insight into host-microbe interactions and supports the development of diagnostic and therapeutic strategies.

Why Use GC-FID for SCFA Analysis

GC-FID (gas chromatography with flame ionization detection) is particularly well-suited for SCFA analysis due to its sensitivity to low molecular weight, volatile organic acids. Compared to HPLC with UV detection, which often lacks sufficient resolution or sensitivity for short-chain carboxylic acids, GC-FID offers superior peak sharpness and quantification accuracy. While GC-MS provides structural confirmation, it demands more complex instrumentation and method development, including expensive deuterated internal standards for isotopic dilution. GC-FID, by contrast, delivers reliable, cost-effective quantification with a wide linear dynamic range, minimal matrix interference, and high reproducibility—especially when paired with optimized derivatization and column chemistries.

GC-FID is widely adopted across academic, clinical, and industrial laboratories due to its operational simplicity and broad applicability. Whether for fecal SCFA monitoring in clinical trials or acetate profiling in anaerobic digesters, standardized GC-FID protocols allow for reproducible inter-laboratory comparisons and efficient high-throughput analysis.

Quantitative measurement of short-chain fatty acids (Abbiss, Hayley, et al., 2023)

Principles of GC-FID for SCFA Detection

Chemical Properties of SCFAs Relevant to GC Analysis

SCFAs possess several intrinsic chemical characteristics that make them amenable to gas chromatographic separation. Firstly, their low molecular weight and high volatility ensure efficient vaporization in the GC injector port, particularly when using a split injection mode. These properties enable them to travel through the GC column without excessive retention time, which reduces peak broadening and enhances resolution.

However, their high polarity—stemming from the terminal carboxylic acid group—can present a challenge. Polar compounds tend to interact strongly with the active sites in the GC column and liner, potentially leading to tailing peaks, low recovery, and poor reproducibility. To mitigate this, derivatization can be employed to increase volatility and reduce hydrogen bonding, though it is not always mandatory for all applications.

Thermal stability is another crucial consideration. Fortunately, SCFAs are stable under the standard temperature ranges used in GC analysis (typically under 250°C), allowing consistent performance without degradation. Nonetheless, column bleed and matrix-induced contamination can interfere with reproducibility over time if proper sample preparation and column care are not maintained.

Polarity and Derivatization Requirements (if any)

Due to their hydrophilic nature and limited retention on non-polar stationary phases, SCFAs benefit from the use of highly polar capillary columns (e.g., FFAP or Nukol) tailored for carboxylic acid separation. In matrices with high aqueous content or low SCFA concentrations, chemical derivatization can greatly enhance detection.

Derivatization transforms the SCFA into a less polar, more thermally stable, and more volatile compound. Common derivatizing agents include:

• MTBSTFA (N-Methyl-N-(tert-butyldimethylsilyl) trifluoroacetamide): Forms silylated derivatives with sharp, well-separated peaks.
• BF₃–methanol: Used to convert SCFAs into methyl esters, improving volatility and detector response.
• PFBBr (pentafluorobenzyl bromide): Often used for GC-MS but applicable for FID when high selectivity is needed.

Despite the benefits, derivatization adds complexity to the protocol, increases preparation time, and may introduce variability if not standardized carefully. Therefore, it is often reserved for low-abundance samples or when separation of isomeric SCFAs is critical.

FID Detection Mechanism

The flame ionization detector (FID) operates based on ionization of carbon-containing compounds in a hydrogen-air flame. As the analyte exits the GC column and is combusted, organic molecules produce ions and electrons. These charged particles create a measurable current between two electrodes, which is directly proportional to the number of carbon atoms entering the flame per unit time.

How FID Detects Organic Compounds

FID is a mass-sensitive detector but not structurally selective. It does not provide molecular identity but responds strongly and consistently to most organic compounds, especially hydrocarbons, alcohols, and carboxylic acids. Importantly, the FID response is largely unaffected by oxygen, nitrogen, or sulfur content in the molecule—making it ideal for quantifying SCFAs without interference from inorganic contaminants or water vapor.

Sensitivity Toward Low Molecular Weight Carboxylic Acids

SCFAs, despite their low molecular weights, generate strong FID signals due to their concentrated carbon content per molecule. The detector's linear dynamic range spans six to seven orders of magnitude, allowing both trace-level detection (e.g., <0.5 μM) and accurate quantification of more concentrated samples (up to mM levels). This is particularly advantageous in studies involving diverse matrices like feces, serum, or fermented substrates, where SCFA concentrations can vary by orders of magnitude.

Quantification Advantages and Linear Dynamic Range

FID's nearly universal response for carbon-based analytes simplifies the quantification process. Unlike UV or fluorescence detectors, which require chromophores or specific excitation wavelengths, FID provides consistent signal response across SCFA types. Its linear dynamic range—typically spanning from 10⁻⁹ to 10⁻³ mol/L—enables quantification without the need for dilution or multiple injection volumes.

Furthermore, since the detector response is directly proportional to the molar concentration of the carbon atoms, SCFA quantification can be streamlined using a single internal standard and a mixed SCFA calibration standard, without relying on compound-specific response factors or correction coefficients.

Sample Preparation Protocol

Accurate quantification of SCFAs by GC-FID begins with meticulous sample preparation. Due to the wide variety of matrices—ranging from fecal slurries to fermentation broths—tailoring the extraction and clean-up process is critical. A consistent and reproducible protocol ensures the integrity of results and prolongs the life of the GC system.

Sample Types

SCFAs are typically analyzed in the following matrices:

Fecal samples – The most common matrix in gut microbiota studies. These contain high microbial content and varying fiber residues.

Serum or plasma – Used to assess systemic SCFA absorption and host metabolism. SCFA concentrations in blood are significantly lower and often require additional cleanup steps.

Microbial culture supernatants – Obtained from in vitro fermentation systems or probiotic formulations.

Food matrices – Such as fermented dairy or pickled vegetables, where SCFA levels indicate fermentation activity and product quality.

Environmental samples – Including bioreactor effluents and soil extracts, typically with higher variability in matrix composition.

Each matrix has specific extraction requirements, but the overall approach shares key principles: acidification, centrifugation, internal standardization, and optional derivatization.

Extraction Procedure

1. Sample homogenization

For solid samples such as feces, homogenize 100–200 mg of fresh or thawed sample in 1–2 mL of deionized water or saline. Vortex vigorously for 2–3 minutes or use a bead beater if available to achieve thorough disruption.

2. Centrifugation

Centrifuge the homogenate at 12,000–15,000 × g for 10–15 minutes at 4°C to remove particulate matter. Carefully transfer the supernatant into a clean microcentrifuge tube. This supernatant contains the free SCFAs in solution.

3. Use of internal standards

Add a fixed volume of internal standard (commonly isocaproic acid or 2-ethylbutyric acid) at a known concentration to each sample and standard. This step is critical to correct for extraction efficiency, injection variability, and matrix effects.

4. Acidification

Acidify the sample to pH < 3.0 using a strong acid such as 50% HCl or 5% phosphoric acid. Acidification protonates the SCFAs, ensuring they are in their volatile, non-ionized form for optimal gas chromatographic behavior.

5. Vortex and incubate

After acid addition, vortex the tube and let it incubate at room temperature for 10–15 minutes to allow for full release and stabilization of SCFAs.

6. Final centrifugation

Centrifuge again to pellet any precipitated proteins or undissolved solids. Transfer the clarified supernatant to a GC vial fitted with a low-volume insert.

Optional: Derivatization Techniques

While SCFAs can be analyzed in their native form using polar columns, derivatization may significantly improve peak symmetry, sensitivity, and resolution—especially in complex biological matrices or when quantifying minor SCFAs.

Benefits of derivatization

• Improves volatility and chromatographic behavior
• Enhances peak shape and reduces tailing
• Increases detector response for trace analytes
• Reduces active site interaction in the injector or column

Common derivatizing agents

• MTBSTFA: Converts acids to their tert-butyldimethylsilyl (TBDMS) esters; widely used for fecal and serum SCFAs
• BF₃–methanol: Methylation of carboxylic acids; fast and effective, but requires careful handling due to reagent instability
• Pentafluorobenzyl bromide (PFBBr): Often reserved for GC-MS due to its electron-capture properties

Procedure (example with MTBSTFA)

Mix 100 µL of sample with 100 µL of MTBSTFA in a sealed glass vial, then incubate at 60°C for 30 minutes. After cooling, inject directly into the GC-FID.

Filtration and Deproteinization

Prior to GC injection, removal of proteins and particulates is essential to prevent column fouling and injector blockages:

• Protein precipitation: Add 3 volumes of cold methanol or acetonitrile to the acidified extract, vortex, incubate on ice, and centrifuge. This step is particularly useful for serum or plasma.
• Filtration: Use 0.22 µm nylon or PTFE syringe filters to eliminate fine debris from final extracts. Avoid cellulose-based filters which can adsorb SCFAs.

Clean extract preparation ensures:

• Minimal column contamination
• Stable baselines
• Longer column lifespan
• Improved reproducibility

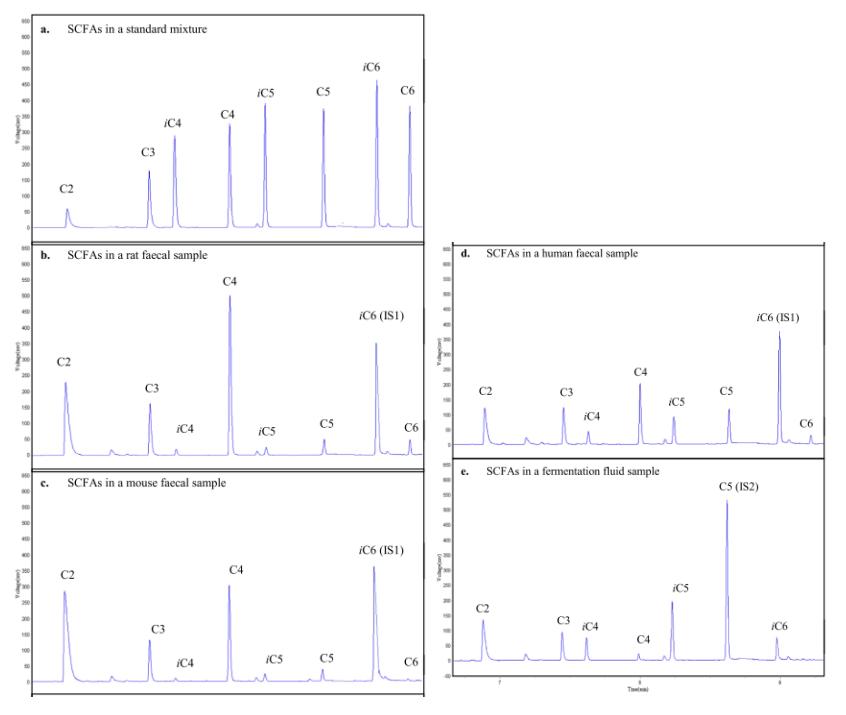

Chromatograms showing short-chain fatty acids (SCFAs) in a standard mix (a), rat feces (b), mouse feces (c), human feces (d), and fermentation fluid (e). SCFAs include acetic (C2), propionic (C3), butyric (C4), iso-butyric (iC4), valeric (C5), iso-valeric (iC5), caproic (C6), and iso-caproic acids (iC6) (Scortichini, Serena, et al., 2020).

GC-FID Instrumental Setup

The performance of SCFA quantification by GC-FID is highly dependent on precise instrument configuration. Each component—from the column chemistry to the flame ionization parameters—must be optimized for short-chain carboxylic acids, which are highly volatile, polar, and prone to co-elution if resolution is suboptimal.

Column Selection

Choosing the right column is the foundation for accurate SCFA separation.

Recommended Columns

• FFAP (Free Fatty Acid Phase): A nitroterephthalic acid-modified polyethylene glycol phase ideal for free acid separation.
• Nukol (Supelco): Also based on polyethylene glycol but tailored for low-molecular-weight organic acids.
• Stabilwax-DA (Restek): Offers high polarity and thermal stability for acidic compounds.

Column Specifications

• Length: 30–60 meters
• Internal Diameter: 0.25 mm is standard; narrower columns can be used for higher resolution.
• Film Thickness: 0.25–0.5 µm provides a good balance between retention and sensitivity.

Stationary Phase Considerations

Columns must have strong polarity to retain and separate low-carbon-number acids. Avoid non-polar or weakly polar phases (e.g., 5% phenyl methylpolysiloxane) which cannot resolve C2–C6 SCFAs effectively.

Temperature Programming

The temperature program is crucial to achieving complete SCFA resolution without co-elution or peak distortion.

Typical Program

• Initial Temperature: 80°C
• Hold Time: 1–2 minutes
• Ramp Rate: 10–12°C/min
• Final Temperature: 200–220°C
• Final Hold: 5 minutes (or longer for late-eluting acids)

Optimization Tips

• A slower ramp rate (5–8°C/min) may be used to improve resolution between closely eluting acids such as isobutyrate and butyrate.
• Avoid starting below 60°C, as this can lead to poor reproducibility and longer equilibration times.
• Final hold is essential to flush higher-boiling matrix components that could degrade column performance over time.

Carrier Gas and Flow Rates

Carrier Gas Options

• Helium: Most commonly used, inert, and compatible with all columns.
• Hydrogen: Offers better efficiency and faster analysis but requires safety precautions due to flammability.

Flow Rate Settings

• Helium: 1.0–1.5 mL/min
• Hydrogen: 0.8–1.2 mL/min
• Use constant flow mode to maintain consistent linear velocity, especially when using temperature programming.

Impact on Resolution

• Too high a flow rate can reduce separation efficiency.
• Too low a rate can lead to peak broadening and longer retention times.
• Capillary flow calculators (e.g., Agilent or Restek tools) should be used for precise optimization.

Injector and Detector Conditions

Injection Parameters

• Mode: Split or splitless, depending on concentration.
  • Split (e.g., 1:20 to 1:50) is preferred for fecal or culture extracts to prevent column overload.
  • Splitless mode is used when sensitivity is critical, such as in plasma or serum analysis.
• Injection Volume: 1 µL is standard.
• Injector Temperature: 220–250°C to ensure complete vaporization of volatile SCFAs.

FID Detector Settings

• Detector Temperature: 250–280°C
• Hydrogen Flow: 30–40 mL/min
• Air Flow: 300–400 mL/min
• Make-up Gas (e.g., nitrogen or helium): 25–30 mL/min

Flame Stability

• Ensure that the detector gases are clean and regulated; flame instability or drift can affect sensitivity and baseline consistency.
• Flame should ignite promptly and burn with a stable blue cone.

Best Practices for System Configuration

• Pre-condition new columns with blank runs before sample injection.
• Use guard columns to protect analytical column integrity.
• Always inject calibration standards before and after each run batch to monitor for retention time shifts or detector drift.

Calibration and Quantification

Accurate quantification of short-chain fatty acids (SCFAs) by GC-FID hinges on rigorous calibration and the strategic use of internal standards. This section details best practices to ensure linear, sensitive, and reproducible measurements across a wide concentration range, tailored for complex biological and environmental matrices.

Preparation of Calibration Standards

Constructing calibration curves that span the expected SCFA concentration range is essential. Mixed SCFA standards, commercially available or prepared in-house, should include all analytes of interest—commonly acetate, propionate, butyrate, isobutyrate, valerate, and isovalerate.

Concentration Range

Standards should cover low micromolar (µM) to millimolar (mM) levels depending on sample matrix: for feces, a range from 0.05 to 10 mM is typical; for plasma, 0.1 to 100 µM is more appropriate. Preparing at least five calibration points, spaced evenly on a logarithmic scale, enables precise curve fitting and assessment of linearity.

Standard Preparation

Standards must be prepared fresh or stored at -20°C in acidified conditions to prevent microbial degradation and volatilization losses. Use the same solvent system and acidification procedure as for samples to minimize matrix effects.

Internal Standard Strategy

Internal standards (IS) compensate for extraction losses, injection variability, and matrix interference. The choice of IS is critical for accurate quantification.

Selection Criteria

The IS should be chemically similar to the analytes but absent in the samples. Isocaproic acid (6-carbon SCFA) or 2-ethylbutyric acid are commonly employed. The retention time should be close to the target SCFAs without co-elution.

Concentration Optimization

IS concentration must fall within the linear detector response range and ideally match the expected analyte levels. Consistency in IS addition—before extraction—is essential for correction accuracy.

Correction for Sample Loss and Variation

Quantification is based on the ratio of analyte peak area to IS peak area, which normalizes sample-to-sample variations. Calculate concentrations by interpolating this ratio against the calibration curve, reducing systematic errors from preparation or injection.

Linearity, LOD, LOQ

Establishing the linearity, limit of detection (LOD), and limit of quantification (LOQ) validates method performance.

Linearity

Plot analyte/IS response ratios against known concentrations to generate calibration curves. The coefficient of determination (R²) should exceed 0.995 to confirm excellent linearity.

Limit of Detection and Quantification

LOD is defined as the lowest concentration yielding a signal-to-noise (S/N) ratio of 3:1, while LOQ requires an S/N ratio of at least 10:1. Calculate these by analyzing low concentration standards and blanks. Accurate LOD/LOQ determination is critical for clinical or environmental samples where SCFAs may be at trace levels.

Method Validation

Ensuring the reliability and reproducibility of the GC-FID protocol for SCFA analysis requires comprehensive method validation. This involves evaluating precision, accuracy, matrix effects, and stability—critical parameters to guarantee data integrity across different sample types and experimental conditions.

Precision and Accuracy

Repeatability (Intra-day Precision)

Repeatability is assessed by analyzing replicate injections of the same sample within a single day. Ideally, the relative standard deviation (RSD) of SCFA peak areas or concentrations should be below 5%. This confirms the instrument's stability and method consistency during short-term runs.

Reproducibility (Inter-day Precision)

Inter-day precision measures variation across different days and potentially different analysts or instruments. An RSD under 10% is considered acceptable. Routine quality control samples should be included in analytical batches to monitor reproducibility.

Recovery Studies and Spiking Protocols

Recovery experiments assess the efficiency of extraction and sample preparation. Known amounts of SCFA standards are spiked into the matrix at multiple concentrations, processed through the entire protocol, and quantified. Recovery rates between 85% and 115% indicate robust extraction and minimal losses.

Matrix Effects

Complex biological and environmental matrices may suppress or enhance the GC-FID signal, potentially skewing quantification.

Evaluation of Matrix Interference

Matrix effects can be evaluated by comparing calibration curves prepared in pure solvent against those in matrix-matched solutions. Significant deviations necessitate the use of matrix-matched standards or isotope-labeled internal standards to compensate.

Mitigation Strategies

Dilution of samples, thorough sample cleanup, and the use of internal standards help reduce matrix-induced variability. For challenging matrices such as plasma or soil extracts, additional purification steps like solid-phase extraction (SPE) may be warranted.

Stability Studies

SCFA stability during storage and processing impacts the accuracy of quantification.

Storage Conditions

Samples should be stored at -80°C for long-term preservation and at 4°C for short-term use. Freeze-thaw cycles should be minimized to prevent SCFA degradation.

Stability During Processing

SCFAs are generally stable under acidic conditions and moderate temperatures used during sample prep. However, prolonged incubation at elevated temperatures or exposure to light can lead to degradation. Validation experiments should include stability tests across typical workflow timelines.

Troubleshooting and Optimization Tips

Despite meticulous method development, GC-FID analysis of SCFAs can encounter challenges that affect data quality and instrument performance. Understanding common issues and their solutions ensures reliable, long-term operation and accurate quantification.

Common Issues

Peak Tailing

Tailing peaks are often caused by active sites in the injector liner, column, or sample matrix impurities interacting with SCFAs. This phenomenon compromises resolution and quantification accuracy.

Ghost Peaks

Unexpected peaks may arise from column bleed, reagent impurities, or carryover from previous injections. These can interfere with SCFA identification and integration.

Co-elution

Due to the similar chemical properties and volatility of SCFAs, inadequate chromatographic resolution may cause overlapping peaks, complicating quantification.

Detector Drift or Inconsistent Baseline

Variations in flame stability or gas flows can cause baseline noise or drift, reducing signal-to-noise ratio and reproducibility.

Solutions and Preventive Measures

Column Maintenance and Injector Cleaning

Regularly replace or bake out the GC column according to manufacturer recommendations. Clean or replace injector liners frequently to remove residues that cause active sites. Using deactivated liners can reduce peak tailing.

Use of Guard Columns

Installing a short guard column protects the analytical column from particulate and high-boiling contaminants, prolonging column life and maintaining peak shapes.

Blank Runs and System Conditioning

Run solvent blanks periodically to identify carryover or ghost peaks. Conditioning the system with several blank runs after maintenance or derivatization prevents contamination artifacts.

Gas Quality and Flow Calibration

Use high-purity gases and maintain regulated gas flow rates. Regularly check and calibrate flow controllers to ensure flame stability and consistent baseline.

Optimizing Temperature Program and Injection Parameters

Adjust oven ramp rates and injector split ratios to enhance resolution and reduce co-elution. Lower injection volumes may reduce overload and peak distortion.

References

1. Scortichini, Serena, et al. "Development and validation of a GC-FID method for the analysis of short chain fatty acids in rat and human faeces and in fermentation fluids." Journal of Chromatography B 1143 (2020): 121972.
2. Abbiss, Hayley, et al. "Quantitative determination of short chain fatty acids in synthetic feces using gas chromatography with flame ionization detection or mass spectrometry." Journal of Chemical Education 101.1 (2023): 113-119.
