Quantifying Arginine in Preclinical Studies: A Practical Guide

Arginine (Arg) plays a pivotal role in diverse physiological processes, including nitric oxide synthesis, immune modulation, and nitrogen balance. In preclinical studies, its quantification is critical for evaluating drug effects, metabolic states, and disease models. However, accurately quantifying this polar amino acid is no trivial task—it requires a careful combination of analytical technique, method validation, and robust sample preparation.

This guide provides CRO project managers, lab leaders, and bench scientists with a practical overview of the best methods and workflows to achieve reliable arginine quantification in preclinical studies.

Why Arginine Quantification Matters in Preclinical Research

Arginine serves as a precursor to several biologically active compounds, such as nitric oxide (NO), urea, ornithine, citrulline, and polyamines. Its metabolism is tightly regulated and responsive to both physiological and pathological stimuli. In preclinical models, fluctuations in arginine levels are closely associated with:

• Inflammation and immune activation
• Tumor microenvironment modulation
• Endothelial function and cardiovascular outcomes
• Amino acid-based nutritional interventions

Quantifying arginine is therefore essential for interpreting disease phenotypes, monitoring treatment responses, or assessing pathway-targeted drugs. Reliable data begins with selecting the right method for quantification.

Overview of Arginine Quantification Methods

Colorimetric and Fluorescence-Based Kits (Basic, Low-Throughput)

Colorimetric assays, often based on ninhydrin or Sakaguchi reaction principles, offer a low-cost, accessible route for basic arginine screening. However, they suffer from:

• Poor specificity (interference from other amino acids)
• Limited sensitivity (LOD often >1 μM)
• Inapplicability to complex biological matrices

These kits may serve educational or coarse screening purposes, but are not recommended for pharmacological or biomarker-driven studies.

High-Performance Liquid Chromatography (HPLC)

HPLC with pre-column derivatization—commonly using o-phthalaldehyde (OPA) or fluorenylmethyloxycarbonyl chloride (FMOC)—remains a widely used method. It enables UV or fluorescence detection with decent resolution and quantification. However:

• Requires complex and time-sensitive derivatization
• Not ideal for polar arginine without ion-pairing or reverse-phase optimization
• Lower specificity than LC-MS for plasma or tissue samples

Still, HPLC is useful for steady-state profiling, especially in non-matrix-heavy samples like cell lysates or simple media.

Liquid Chromatography–Tandem Mass Spectrometry (LC-MS/MS)

LC-MS/MS has become the gold standard for arginine quantification due to its:

• High sensitivity (LOD <1 nM)
• Excellent selectivity using MRM (Multiple Reaction Monitoring)
• Capability for multiplexed amino acid panels

Using stable isotope-labeled internal standards (e.g., 13C6-arginine), this technique delivers highly accurate and reproducible data even in complex biological matrices. At Creative Proteomics, we routinely apply LC-MS/MS for absolute quantification of arginine with CVs <10% across replicates.

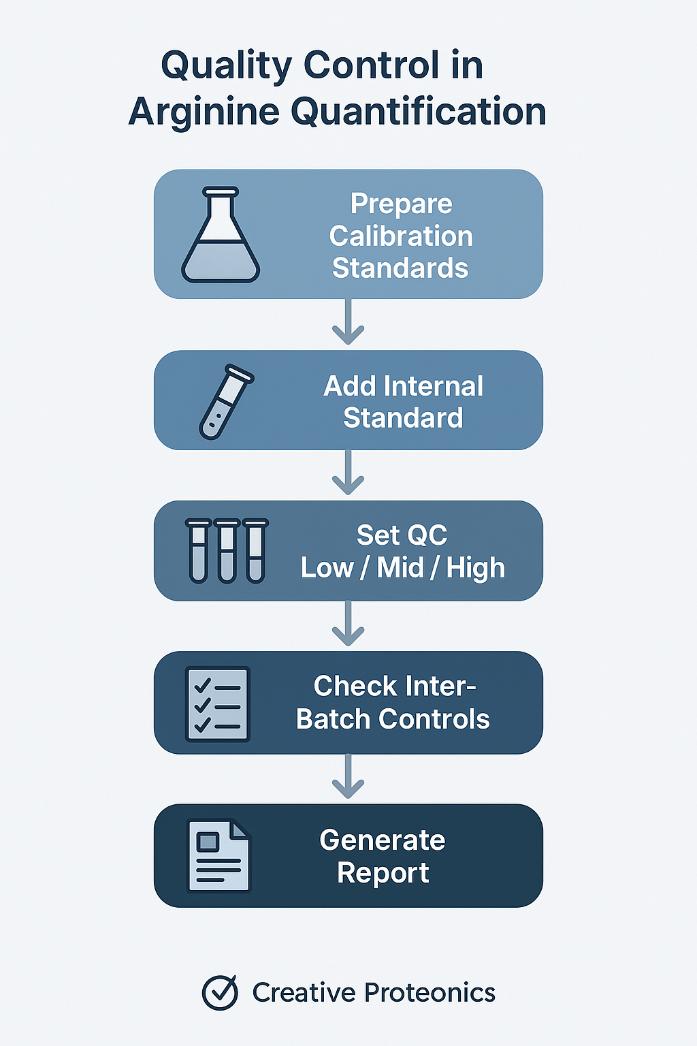

Ensuring Accuracy and Reproducibility in Arginine Measurement

Generating high-quality arginine data requires more than a sensitive instrument—it demands methodical validation and ongoing quality control. In preclinical studies, where data variability can directly impact interpretation of drug efficacy or mechanism, analytical reproducibility is crucial. The following aspects are key to ensuring measurement reliability:

Matrix-Matched Calibration Curves

Calibration standards must be prepared in the same biological matrix as the study samples (e.g., plasma, tissue homogenate) to reflect actual ion suppression or enhancement effects.

A typical calibration curve for arginine spans 0.01–50 μM, with R² values exceeding 0.995 to confirm linearity across physiologically relevant ranges.

Conceptual diagram illustrating the limit of detection (LOD) in analytical chemistry. The LOD defines the minimum concentration at which a signal can be reliably distinguished from background noise.

Use of Stable Isotope-Labeled Internal Standards

Incorporating a labeled internal standard (such as ¹³C₆-arginine) early in the sample preparation process compensates for losses during extraction, variability in injection volume, and matrix-dependent ion suppression.

This approach is especially important in complex matrices like liver or tumor lysates, where endogenous compounds may interfere with analyte signals.

Quality Control (QC) Samples

At least three QC levels—low, medium, and high concentrations—should be run in parallel with study samples.

Acceptable precision is defined by %CV (coefficient of variation) values of:

• <10% for intra-assay replicates
• <15% across different runs or batches

Batch Monitoring and Drift Detection

Analytical performance should be monitored using pooled biological QC samples and system suitability checks before and during each run.

In long-term or multi-batch studies, trends in QC recovery can reveal instrumental drift, allowing corrections before data integrity is compromised.

Sample Preparation Best Practices for Arginine Quantification

Sample preparation is one of the most critical determinants of success in arginine quantification. Arginine's high polarity and hydrophilicity make it particularly sensitive to matrix effects, enzymatic degradation, and recovery losses during extraction. A well-designed preparation protocol ensures that the final data reflects true biological variation—not technical artifacts.

Choose the Right Sample Type for the Study Objective

Arginine can be measured in a variety of biological matrices, and each has its own considerations:

Optimize Protein Precipitation and Extraction

• Solvent choice: Cold methanol or acetonitrile (typically at a 3:1 ratio to sample volume) effectively precipitate proteins while stabilizing polar metabolites.
• Processing conditions: Work at 4°C or on ice to minimize enzymatic activity and degradation.
• Centrifugation: Use high-speed centrifugation (≥12,000 g) to remove fine particulates that can clog LC columns or suppress ionization.

Minimize Variability During Sample Handling

• Spike internal standards (e.g., labeled arginine) before any extraction steps to correct for losses during processing.
• Avoid repeated freeze–thaw cycles, which can degrade arginine and alter matrix composition.
• Aliquot samples upon collection to minimize handling errors and ensure uniform processing across time points.

Consider Derivatization Needs

While LC-MS/MS typically allows direct injection of extracted arginine, HPLC and some fluorescence methods require derivatization.

• OPA or FMOC derivatives must be freshly prepared and protected from light.
• Derivatization timing is critical—reaction windows may be as short as 5–15 minutes for optimal signal consistency.

Troubleshooting Common Issues in Arginine Quantification

Even with validated methods and optimized protocols, issues can arise during arginine analysis—especially in high-throughput or biologically diverse preclinical studies. Early identification and resolution of common problems can preserve data quality and prevent costly delays. Below are frequently encountered issues and recommended corrective actions:

Unexpectedly Low Arginine Levels

Potential causes:

• Incomplete protein precipitation leading to matrix suppression
• Losses during extraction or derivatization
• Degradation during sample transport or storage

Solutions:

• Reassess solvent ratios and precipitation temperature
• Confirm the presence of internal standard recovery
• Check cold chain integrity and reduce sample processing time

High Background Signal or Noise

Potential causes:

• Co-elution with endogenous compounds
• Contamination from glassware, solvents, or mobile phase
• Poor chromatographic separation in HPLC-based methods

Solutions:

• Include matrix blanks and process blanks in each run
• Filter samples using 0.2 μm membranes to remove particulates
• Replace aging mobile phase or columns

Irregular or Tailing Peaks

Potential causes:

• Overloading the column with concentrated extracts
• Incomplete derivatization (if applicable)
• Injection system contamination or pressure instability

Solutions:

• Dilute samples and re-inject to confirm overload
• Prepare fresh derivatization reagents and ensure proper reaction timing
• Conduct system maintenance or replace injector seals

Batch-to-Batch Variability

Potential causes:

• Inconsistent extraction timing or operator variation
• Instrumental drift or performance loss
• Poorly defined QC acceptance criteria

Solutions:

• Use pooled QC samples at defined intervals to monitor reproducibility
• Normalize between batches using calibration control points
• Implement automation where possible to reduce human error

Proactively addressing these issues enhances data reliability and reduces post-analysis troubleshooting. At Creative Proteomics, all sample runs include real-time QC monitoring, trend analysis, and performance audits to identify deviations before they impact results.

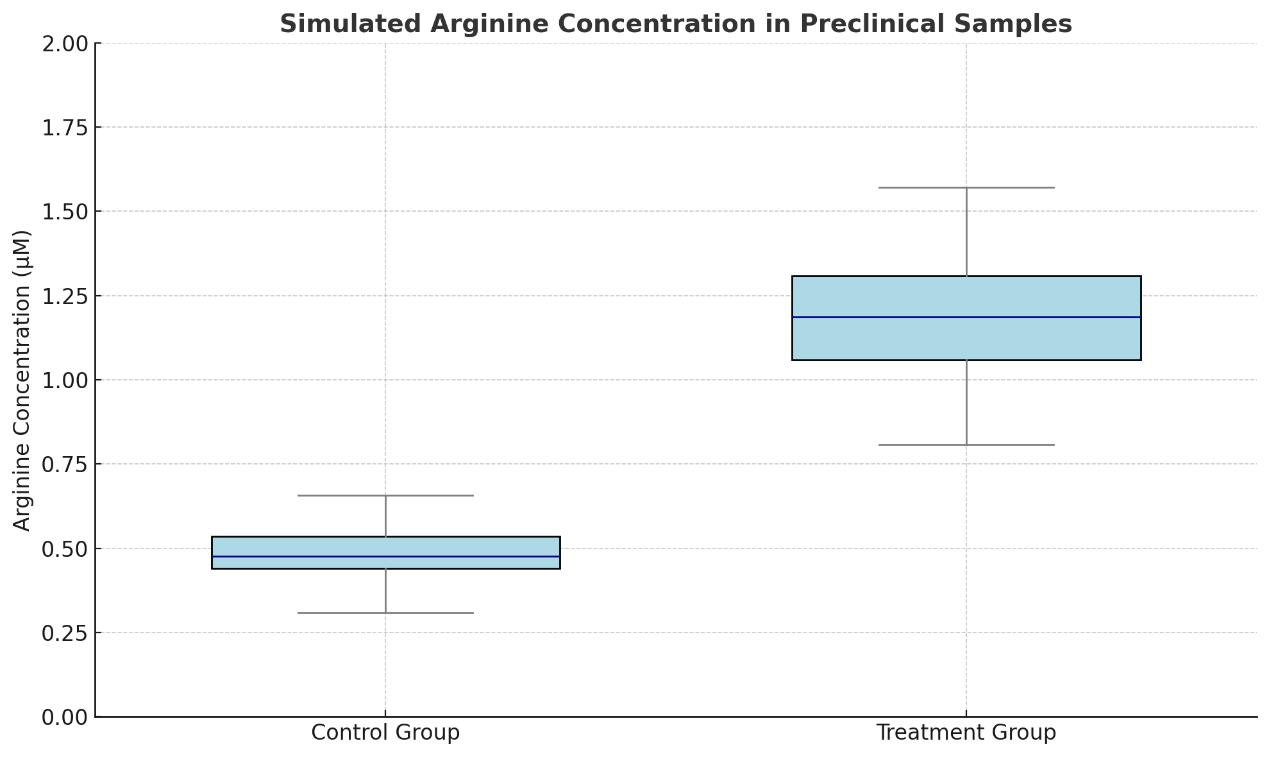

Simulated arginine concentration distributions in preclinical samples from control and treatment groups. Data are presented as box plots showing median, interquartile range, and outliers (n = 30 per group). The figure illustrates the measurable difference in arginine levels achievable using validated LC-MS/MS quantification workflows.

Conclusion: Optimizing Arginine Analysis from Bench to Data

Quantifying arginine in preclinical studies is more than a technical task—it is a strategic component of translational research. From understanding metabolic shifts and immune modulation to tracking pharmacodynamic biomarkers, arginine levels offer powerful insights into biological mechanisms and therapeutic impact.

To generate meaningful, reproducible data, researchers must approach arginine quantification as a full-system process. This begins with method selection that fits the study's scope and continues through sample integrity, validated calibration, internal standards, and quality control enforcement. Just as importantly, proactive troubleshooting and documentation ensure that results can be interpreted confidently and compared across studies.

At Creative Proteomics, we provide end-to-end arginine analysis services designed for the demands of modern drug development and biomedical research. Our LC-MS/MS platforms, experienced bioanalytical team, and custom sample processing workflows enable reliable quantification across a wide range of sample types and biological models.

Whether you're exploring arginine metabolism in inflammatory pathways, evaluating its role in tumor microenvironments, or integrating it into a multi-analyte panel, we are here to support your goals with data you can trust.

🔬 Contact us today to discuss your arginine analysis needs—or explore our full Amino Acid Profiling Service to see how we can support your next preclinical milestone.

References

1. Wu, G., Bazer, F. W., Davis, T. A., Kim, S. W., Li, P., Marc Rhoads, J., Carey Satterfield, M., Smith, S. B., Spencer, T. E., & Yin, Y. "Arginine metabolism and nutrition in growth, health and disease." Amino Acids 37.1 (2009): 153–168. https://doi.org/10.1007/s00726-008-0210-y
2. Cynober, L. "Pharmacokinetics of arginine and related amino acids." Journal of Nutrition 137.6 Suppl 2 (2007): 1646S–1649S. https://doi.org/10.1093/jn/137.6.1646S
