Metabolomics Project Pitfalls: Expert Strategies to Avoid Failure

Metabolomics holds transformative potential for biomedical research, drug discovery, and systems biology. Yet despite advancements in instrumentation and informatics, many metabolomics projects still fail to deliver interpretable, reproducible, and biologically meaningful data. At Creative Proteomics, we've collaborated with CROs, academic researchers, and biotech teams across hundreds of metabolomics studies—and we've seen where things can go wrong.

In this article, we break down the most common pitfalls our clients face and provide practical, actionable strategies to help you avoid them. Whether you're planning your first untargeted study or preparing for regulatory preclinical research, this guide is your roadmap to metabolomics success.

Poor Sample Handling: The #1 Reason Projects Fail Before They Begin

Customer Pain Point

"Why do my replicates vary so much, even though they're from the same condition?"

What Goes Wrong

Metabolites are extremely sensitive to time, temperature, enzymatic degradation, and mechanical stress. The moment a biological sample is harvested, endogenous metabolic activity continues unless immediately quenched, leading to artificial changes in metabolite concentrations—especially in energy metabolism pathways such as glycolysis, TCA cycle, and amino acid turnover.

Even minor inconsistencies—such as different centrifugation speeds, prolonged thawing, or varying sample-to-solvent ratios—can skew your results and reduce reproducibility. These issues are especially prevalent in multi-site studies or when sample collection is outsourced without standard operating procedures (SOPs).

Matrix-Specific Vulnerabilities:

• Plasma/Serum: Delays in centrifugation cause hemolysis and enzymatic conversion of nucleotides and fatty acids.
• Urine: Bacterial contamination during collection alters short-chain fatty acid (SCFA) and amino acid profiles.
• Tissue: Post-mortem ischemia rapidly alters redox-sensitive metabolites (e.g., NADH, glutathione).
• Cell cultures: Media composition, washing steps, and harvesting technique affect intracellular vs. extracellular metabolite separation.

Key Risk Factors Often Overlooked:

• Use of non-inert containers (e.g., plasticizers from standard tubes leach into samples)
• Freeze–thaw cycles during aliquoting for replicates
• Variations in blood draw tubes (e.g., heparin vs. EDTA affecting phospholipid stability)
• Evaporation during lyophilization or vacuum concentration for dry weight normalization

How to Avoid It

1. Define SOPs Per Sample Type

Don't apply a generic "one-size-fits-all" method. Creative Proteomics provides validated, matrix-specific collection protocols for plasma, CSF, plant tissues, microbial cultures, etc.

2. Use Quenching Immediately Post-Harvest:

• Add cold methanol (−20°C or −80°C) directly to cell cultures or suspensions.
• Snap-freeze tissues in liquid nitrogen within 10–30 seconds.
• Avoid water-based rinsing unless necessary; water triggers enzymatic shifts.

3. Aliquot Upfront to Avoid Repeated Thawing:

• Aliquot samples upon initial receipt into replicate tubes (0.5–1 mL ideal).
• Use polypropylene or certified inert tubes (we recommend screw-cap cryovials, not microcentrifuge snap caps).

4. Ensure Cold-Chain Logistics for Shipping:

• Use sufficient dry ice (minimum 5–10 kg for international samples).
• Include a temperature logger if shipping cross-border for regulatory assurance.

5. Centralize Sample Preparation Where Possible:

When collaborating with multiple labs or sites, coordinate to send raw materials to a central lab (e.g., Creative Proteomics) to standardize extraction, drying, and reconstitution under controlled conditions.

6. Pre-QC Sample Evaluation:

Before full LC-MS/MS or GC-MS analysis, Creative Proteomics can conduct pilot runs or QC-based screening to verify matrix stability, pH, and metabolite integrity.

Mismatched Platform Selection: One Size Does Not Fit All

Customer Pain Point

"We ran LC-MS, but we still can't detect our metabolites of interest."

What Goes Wrong

Metabolomics is not a one-platform-fits-all approach. Each analytical platform—LC-MS, GC-MS, CE-MS, and NMR—has specific capabilities and limitations depending on the polarity, volatility, molecular weight, and stability of target metabolites.

Many projects underperform not because the analysis was technically flawed, but because the wrong detection system was chosen for the metabolites or matrix in question. For example:

• GC-MS excels at volatile, low-molecular-weight compounds like short-chain fatty acids and amino acids, but requires derivatization.
• LC-MS is the workhorse for semi-polar to non-polar compounds like lipids, bile acids, and nucleotides, but may miss small volatiles.
• NMR is highly reproducible and quantitative, but lacks the sensitivity to detect low-abundance biomarkers.
• Capillary Electrophoresis–MS (CE-MS) offers high separation for charged molecules (e.g., organic acids, amino acids) but is rarely used due to limited robustness.

Typical Misalignment Scenarios:

Platform Capability Comparison Table

How to Avoid It – Platform Matching Strategy

1. Start with Chemical Profiling:

• What are your target metabolites' physicochemical properties? Are they volatile? Thermolabile? Charged? Lipophilic?
• Do you need structural isomer separation (e.g., leucine vs. isoleucine)? If so, consider MS/MS or specialized columns.

2. Consider Sensitivity vs. Coverage:

• If low-abundance analytes are key (e.g., signaling lipids, NAD⁺), use ultra-high-sensitivity LC-MS/MS (e.g., triple quadrupole).
• For broad metabolome coverage in discovery studies, pair LC-MS with GC-MS.

3. Plan for Derivatization When Needed:

GC-MS workflows require chemical derivatization (e.g., MSTFA, oximation) for metabolite volatility and stability. This adds steps but is essential for certain molecules.

4. Adopt Multi-Platform Workflows:

Many successful studies use hybrid approaches—e.g., LC-MS for bile acids, GC-MS for organic acids, and NMR for absolute quantitation of sugars or SCFAs.

Creative Proteomics offers integrated pipelines that consolidate these modalities under a unified data reporting format.

5. Customize Chromatography Modes:

Choose between Reversed Phase (RP), HILIC, Ion-Pairing, or Chiral columns depending on your analytes. Creative Proteomics maintains a library of >20 validated LC columns to match metabolite class.

6. Align Platform with Study Goals:

• Discovery: Untargeted LC-MS + GC-MS
• Validation: Targeted LC-MS/MS (MRM, PRM)
• Clinical Research: Absolute-quant LC-MS (GLP-compliant)

Flawed Study Design: No Statistical Power, No Biological Insight

Customer Pain Point

"We have data, but we can't confidently identify any significant biomarkers."

What Goes Wrong

Even the most accurate analytical platform cannot compensate for poor experimental design. A metabolomics study lives or dies on its ability to detect real biological variation against a background of technical and biological noise. Common issues include:

• Underpowered Sample Sizes: Without sufficient biological replicates, variability overwhelms real trends. This is especially problematic in untargeted metabolomics where data dimensionality is high.
• Lack of Controls or Reference Groups: Without clear comparators, it's difficult to interpret metabolite shifts or attribute them to a specific condition.
• Inadequate Randomization or Blocking: Processing all samples of one group before the other introduces batch effects that masquerade as biological signals.
• No Predefined Hypothesis or Biological Question: Exploratory design without scientific focus results in unmanageable data with limited translational value.

A flawed design doesn't just waste resources—it can actively mislead decision-makers. For pharma and biotech clients, this can delay timelines, misdirect lead compound selection, or result in failed validation studies.

Real-World Failure Scenarios

How to Avoid It – Strategic Study Design Principles

1. Start with a Biological Question

• Are you identifying biomarkers? Confirming pathway activation? Screening compound effects?
• Define your goal before choosing between targeted and untargeted workflows.

2. Use Power Calculations

Determine the number of biological replicates required to achieve statistical significance based on anticipated fold-change and variability. Creative Proteomics offers power analysis support based on previous datasets and matrix type.

3. Include Proper Controls and References

Always include:

• Untreated or vehicle control groups
• Time 0 or baseline conditions
• Internal references (e.g., pooled QC)

For large studies, consider including a study-wide reference pool injected repeatedly to normalize across days.

4. Randomize and Block Experimental Steps

Don't process samples group-by-group. Instead:

• Randomize sample preparation order
• Randomize injection sequence across the LC-MS queue

Use blocking strategies to balance technical variables across biological groups.

5. Account for Confounding Variables

Gender, age, fasting status, time of day, media composition, and sample collection technician can all influence metabolite levels. Record metadata carefully and include it in statistical models.

6. Include Technical Replicates for QC

Technical replicates (injection duplicates or sample splits) help assess analytical precision. At Creative Proteomics, we inject pooled QC samples every 10–12 samples to monitor instrument drift and perform post-acquisition correction.

Our Value-Added Design Support

At Creative Proteomics, we believe metabolomics starts long before the first sample hits the column. We routinely support clients during project planning with:

• Dedicated design consultation sessions with biostatistics and metabolomics experts
• Study design templates tailored to clinical, microbial, plant, or toxicological studies
• Project-specific guidance on replicates, controls, and sample balancing strategies
• Batch QC planning, metadata tracking frameworks, and normalization protocols

Targeted or Untargeted? Choosing the Wrong Approach Can Cost You

Customer Pain Point

"We requested untargeted metabolomics, but now we're overwhelmed with thousands of features and don't know what to do with them. Should we have done targeted instead?"

What Goes Wrong

Choosing between targeted and untargeted metabolomics is not a trivial decision—it shapes the entire downstream process, from data processing to biological interpretation.

Untargeted metabolomics captures as many metabolites as possible, including unknown or unexpected compounds. It's ideal for hypothesis generation, exploratory studies, and biomarker discovery. However, it generates massive datasets with thousands of peaks, many of which lack definitive identification or quantification. Without strong bioinformatics infrastructure and follow-up validation, these results can stall.

Targeted metabolomics, by contrast, focuses on a predefined set of metabolites (typically 10–200), using multiple reaction monitoring (MRM) or parallel reaction monitoring (PRM) with internal standards. It's best for hypothesis-driven studies, quantitative comparisons, clinical research, and regulatory submissions. But it is inherently limited in scope—and risks overlooking novel biomarkers or unexpected pathway activity.

Workflow comparison of untargeted and targeted metabolomics.

Common Misalignment Scenarios

Targeted vs. Untargeted Comparison Table

How to Avoid It – Strategic Fit-For-Purpose Selection

1. Clarify the Study Goal:

• Are you exploring metabolic changes in an unknown condition? → Start with untargeted.
• Are you validating pathway activity or dose response? → Use targeted.
• Need both? → Consider a hybrid phased approach.

2. Match Study Phase with Strategy:

Phase I (Discovery): Untargeted LC-MS + GC-MS → Feature annotation, pathway mapping

Phase II (Validation): Targeted MRM panels → Absolute quantification of candidate metabolites

Phase III (Application): Targeted or semi-targeted assays under GLP/QA for translational studies

3. Use Semi-Targeted Panels for Specific Pathways:

Creative Proteomics offers ready-to-deploy panels covering:

These panels balance discovery power with analytical robustness.

4. Plan for Bioinformatics and Validation Upfront:

Don't assume untargeted alone will yield publishable results. Build in budget and timeline for secondary confirmation and reference standard calibration.

What Creative Proteomics Offers

• Targeted LC-MS/MS panels using triple quadrupole and Orbitrap systems
• Untargeted metabolomics via LC-MS, GC-MS, and high-resolution data-dependent acquisition (DDA/DIA)
• Phased workflows with seamless handoff from discovery to validation
• Custom panel development for client-specific compound classes or regulatory projects
• Interpretation support with pathway enrichment and expert review tailored to strategy choice

Untargeted metabolomics tells you what's changing. Targeted metabolomics tells you how much—and if it matters. Choosing the right approach early avoids data paralysis and enables confident decision-making. If you're unsure which fits your project, our scientific team is happy to guide you

📖 Compare Approaches:

Targeted vs. Untargeted Metabolomics

Data Overload Without Biological Context

Customer Pain Point

"We received a table with thousands of m/z features, some nice PCA plots, and heatmaps—but we don't know what any of it means for our biology."

What Goes Wrong

Untargeted metabolomics produces a wealth of data—often thousands to tens of thousands of detected features, each representing a unique ion signal, peak, or fragmentation pattern. But data ≠ insight. Without robust annotation, biological mapping, and interpretive context, these numbers remain disconnected from the systems, pathways, and mechanisms that matter to your project.

Most academic labs and basic CROs stop at Level 4–5 metabolite annotation (as per MSI classification), leaving clients with ambiguous identifiers (e.g., m/z = 487.2814, RT = 5.73 min) instead of actionable metabolite names. Worse, many studies rely on partial databases, incomplete adduct matching, or outdated compound libraries—resulting in misannotation, overinterpretation, or complete data stagnation.

Common Customer Frustration Scenarios

Why Biological Context Matters

• Translatability: Without identifying key metabolites and mapping them to biological processes, you cannot link metabolic changes to disease models, drug targets, or phenotypic outcomes.
• Publication: Journals increasingly require compound-level annotation, false discovery correction, and pathway-based interpretation—not just PCA and volcano plots.
• Biomarker Discovery: Potential biomarkers must be mapped to known pathways (e.g., TCA cycle, tryptophan metabolism) and cross-validated with literature or orthogonal assays.

How to Avoid It

1. Prioritize Annotation Quality Over Quantity

Don't settle for partial annotation. Use multiple database layers: HMDB, KEGG, LipidMaps, METLIN, and custom internal libraries.

Creative Proteomics uses high-resolution MS/MS spectral matching, retention time prediction, and in silico fragmentation (e.g., SIRIUS, MS-DIAL) to improve identification confidence.

2. Apply Chemical Classification & Taxonomy

Categorize metabolites into chemical classes (e.g., sphingolipids, nucleotides, carboxylic acids) using ClassyFire or LipidMaps ontologies. This enables functional grouping and trend visualization beyond single compounds.

3. Use Pathway Enrichment and Network Analysis

Perform statistical enrichment against pathway databases (e.g., KEGG, SMPDB) to highlight activated or suppressed pathways. Use metabolite–gene interaction networks to suggest upstream regulators or downstream effectors.

4. Integrate Metadata and Biological Variables

Include treatment conditions, disease phenotypes, genotypes, and timepoints in statistical models (e.g., PLS-DA, OPLS-DA). This links metabolite shifts with real-world biological interventions.

5. Incorporate Multi-Omics When Possible

Integrating metabolomics with transcriptomics, proteomics, or microbiome data increases explanatory power. Creative Proteomics supports multi-omics integration with unified pathway visualization and correlation matrices.

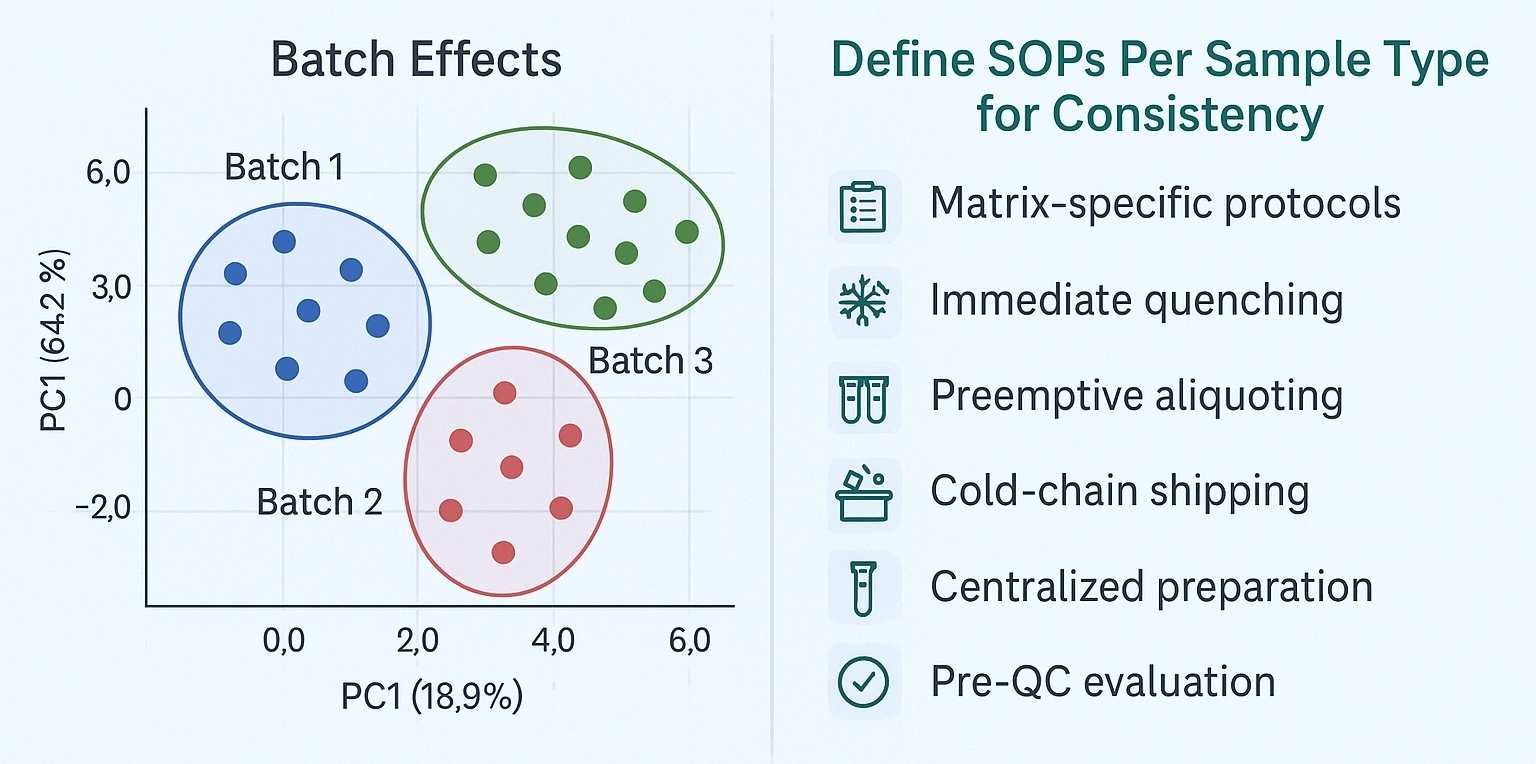

Ignoring Batch Effects and Technical Variability

Customer Pain Point

"Our PCA plots show tight clustering—but by injection order, not by biological group. What went wrong?"

What Goes Wrong

Batch effects and instrumental variability are among the most underestimated causes of misleading results in metabolomics projects. These artifacts arise from systematic differences in:

• Sample preparation batches (e.g., different operators, reagents, or times)
• Instrumental drift over time (e.g., LC column aging, MS source contamination)
• Environmental factors (e.g., room temperature, humidity, power fluctuations)

In untargeted metabolomics, where thousands of variables are compared simultaneously, even subtle technical inconsistencies can dominate over true biological differences. If not proactively addressed, batch effects:

• Confound multivariate statistics (e.g., PCA, PLS-DA)
• Mask or exaggerate biological trends
• Cause false-positive biomarker discovery
• Destroy study reproducibility and peer-review credibility

Real-World Scenarios Where This Happens

How to Avoid It – Quality Control and Normalization Strategy

1. Randomize Sample Order at Every Stage

Randomize during sample extraction, LC-MS queue building, and data processing. If multiple batches are unavoidable (e.g., large-scale studies), ensure samples from each group are evenly distributed across them.

2. Incorporate Robust QC Samples

• Use pooled QC samples (aliquots from all study samples) injected every 5–10 samples to monitor analytical stability.
• Inject blank samples to assess carryover or cross-contamination.
• Use injection replicates of a reference sample to assess precision.

3. Apply Instrument Performance Metrics

• Retention time precision (CV < 0.3%)
• Mass accuracy (Δ < 5 ppm)
• Signal intensity drift (RSD < 15%)

4. Use Advanced Data Normalization Techniques

Implement algorithms that correct for signal drift and inter-batch variability:

• LOESS (locally estimated scatterplot smoothing) for intensity correction
• Combat or RUV (Remove Unwanted Variation) for batch effect removal
• QC-RLSC (Quality Control–based Robust LOESS Signal Correction) for time-course studies

5. Perform Post-Hoc Batch Assessment

• PCA/PLS-DA plots color-coded by injection order, operator, and batch
• Hierarchical clustering to detect unexpected groupings
• Differential analysis adjusted for confounding variables

Our Batch Correction Framework at Creative Proteomics

We follow a three-layer quality control model in all metabolomics studies:

References

1. Novoa-del-Toro, Elva María, and Michael Witting. "Navigating common pitfalls in metabolite identification and metabolomics bioinformatics." Metabolomics 20.5 (2024): 103.
2. Leek, Jeffrey T., et al. "Tackling the widespread and critical impact of batch effects in high-throughput data." Nature Reviews Genetics 11.10 (2010): 733-739.
3. Hajnajafi, Kosar, and Mohammad Askandar Iqbal. "Mass-spectrometry based metabolomics: an overview of workflows, strategies, data analysis and applications." Proteome Science 23.1 (2025): 5.
4. Han, Wei, and Liang Li. "Evaluating and minimizing batch effects in metabolomics." Mass Spectrometry Reviews 41.3 (2022): 421-442.
5. Lehmann, Rainer. "From bedside to bench—practical considerations to avoid pre-analytical pitfalls and assess sample quality for high-resolution metabolomics and lipidomics analyses of body fluids." Analytical and Bioanalytical Chemistry 413.22 (2021): 5567-5585.
